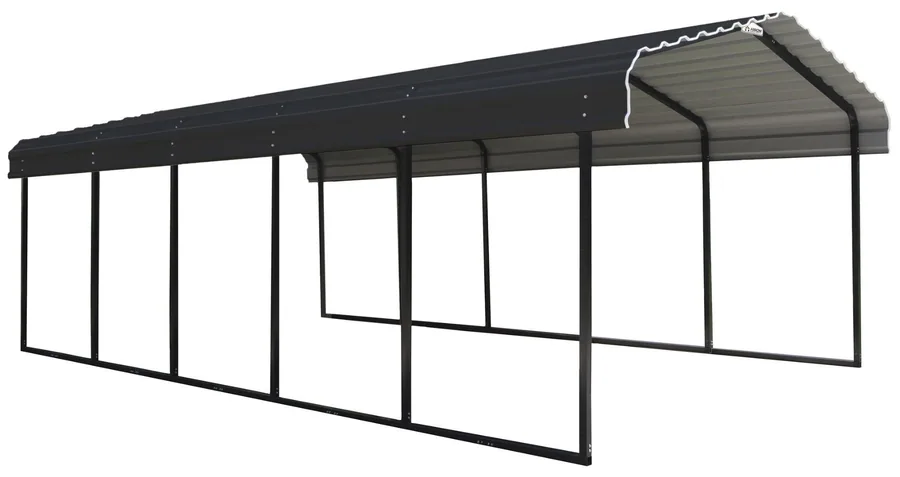

Meet the 12 x 24 ft. Carport from Arrow Sheds: the perfect, more compact all-steel carport fit for smaller vehicles, sedans, outdoor equipment and more. Get reliable shade and shelter with the Arrow Carport - featuring a heavy-duty galvanized steel roof and a all-steel, premium powder coated tube frame. Snow and wind rated, the Arrow Carport is the ultimate shade, shelter and -use carport that's perfect for vehicles, boats, tractors, outdoor picnic areas and much more.
Feature Highlights
- Featuring a 2 in. square tube frame, the Arrow Carport provides stability and strength to the unit, increasing it's wind and snow load capability
- An all-weather carport that will protect your vehicle or outdoor space all-year long: the Arrow Carport is built to take on even tough weather - winds up to 100 mph, and a snow load of 35 PSF
- A heavy-duty, galvanized steel roof that's built to last - features a 29-gauge painted galvanized steel for corrosion resistance
- Roof in an attractive charcoal finish, with a black powder coated steel frame
- Perfect for car storage and shelter, truck shelter, vehicle shelter, boat shelter or as a multi-use shade and picnic area
- ASSEMBLY MADE EASY FOR THE DIYer- The Arrow carport is designed for easy assembly and installation with slip-fit connections and self-taping screws for long lasting protection
- Comes with a 10 year warranty
- Disclaimer- Wind and snow loads given are for reference only and assume a standalone unit without enclosure kit, and a securely anchored frame according to local building codes and ordinances. These loads have been calculated useing combined snow and wind load provisions in accordance with ASCE 7-05. These calculations are based on an unoccupied structure. Local building code requirements vary by location; conformance to local codes is the responsibility of the purchaser
制造商料号 | CPHC122407 |
---|---|
UPC | 026862111951 |
品牌 | Arrow |
货物类型 | LTL |
尺寸 | 12' x 24' |
框架材质 | 钢铁 |
边框颜色 | 黑 |
外罩颜色 | 木炭 |
墙面颜色 | N/A |
门类型 | N/A |
门的颜色 | N/A |
山墙颜色 | N/A |
屋顶颜色 | 木炭 |
顶部颜色 | 木炭 |
管的形状 | 正方形 |
需要组装(是/否) | 是 |
可折叠(是/否) | 否 |
随附储物袋(是/否) | 否 |
防水性(是/否) | 否 |
防水的(是/否) | 否 |
额定雪荷载 (PSF) | 35 |
额定风荷载 (MPH) | 100 |
总存储面积(平方/英尺) | 287 |
总存储容量 (立方英尺) | 2198 |
地基长度(英寸) | 300 |
地基宽度(英寸) | 156 |
门/入口高度(英寸)外侧拉链 | 82 |
门/入口宽度底部(中)外侧拉链 | 142 |
侧门/入口宽度(英寸) | N/A |
侧门开启高度(英寸) | N/A |
山墙高度(英寸) | N/A |
组装的内部尺寸深度(英寸) | 290.75 |
组装好的内部尺寸宽度(英寸) | 142 |
组装好的内部尺寸高度(英寸) | 100 |
组装后的外部尺寸深度(英寸) | 290.75 |
组装后的外部尺寸宽度(英寸) | 146 |
组装后的外部尺寸高度(英寸) | 102 |
包装内容 | Roof Panels, Frame, Anchors, Hardware, Instructions |
箱子数量 | 5 |
纸箱长度(英寸) | 70.87 |
纸箱宽度(英寸) | 24.41 |
纸箱高度(英寸) | 4.41 |
装运时的长度(如果适用,包括托盘)(英寸) | 71.06 |
装运时的宽度(如果适用,包括托盘)(英寸) | 30.25 |
发货时的高度(如果适用,包括托盘)(英寸) | 20.703 |
配送时的重量(如果适用,包括托盘)(磅) | 738.6 |
质保 | 10 年有限质保 |
