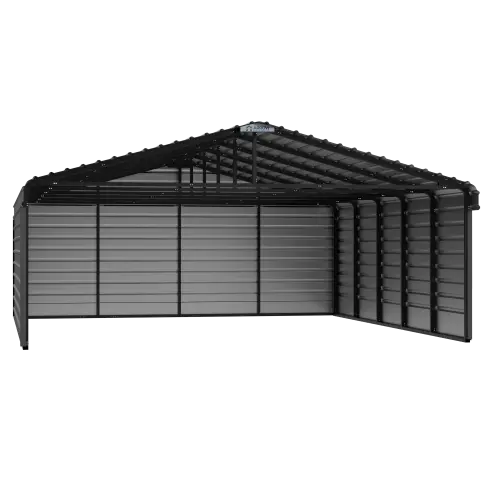

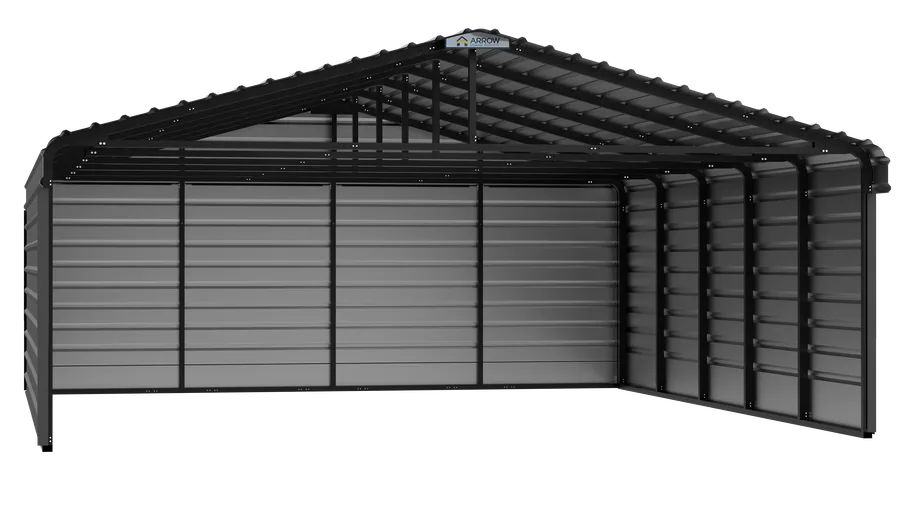

The all-steel Arrow 20 x 24 x 7 ft Charcoal Steel Carport with 3 Wall Kits is a convenient, versatile, and practical all-weather shade and shelter solution that can be used anywhere you need protection from the elements.
The all-steel Arrow 20 x 24 x 7 ft Charcoal Steel Carport with 3 Wall Kits is a convenient, versatile, and practical all-weather shade and shelter solution that can be used anywhere you need protection from the elements. Each ArrowCarport is snow-load rated and designed to take on tough weather conditions. Get one to keep your everyday ride shielded from the weather or to keep your patio or party area shaded.
Feature Highlights
Featuring a 2 in. square tube powder-coated steel frame, which provides stability and strength to the unit
Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box
Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements

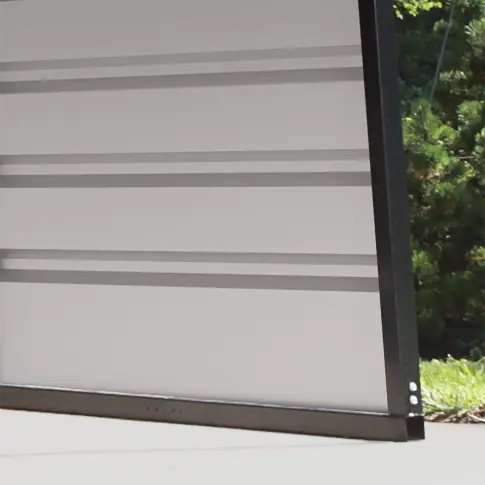

A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
The roof and sidewall panels come in an attractive Charcoal finish
Manufactured in the United States using globally sourced materials
Comes with a 10-year warranty
Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.
Dimensions
Nominal size
20 × 24 ft
Exterior (W × D × H)
20 ft 3 in × 24 ft 3 in × 9 ft 10 in617 × 739 × 300 cm
Interior (W × D × H)
19 ft 9 in × 24 ft 3 in × 9 ft 7 in602 × 739 × 292 cm
Foundation (L × W)
25 ft × 21 ft762 × 640 cm
Covered area
479 sq ft44.5 m²
Storage volume
3,968 cu ft112.4 m³
Nominal Assembled Height (ft)
7
Nominal Assembled Width (ft)
20
Door / Entrance Height, Outside Zippers (in)
84
Door Opening Width at Top, Outside Zippers (in)
237
Door / Entrance Width at Bottom, Outside Zippers (in)
237
Roof & frame
Color
Charcoal
Roof Type
Galvanized Steel Roof
Frame Material
Steel
Frame Color
Black
Cover Color
Charcoal
Wall Color
Charcoal
Roof Color
Charcoal
Roof Trim Color
Charcoal
Weather protection
Water-Resistant
Yes
Snow Load Rating (psf)
35
Wind Load Rating (mph)
80
In the box & shipping
Delivery
Freight carrier
Shipped weight
2,122 lb963 kg
Shipped size (L × W × H)
77 × 31 × 71 in196 × 79 × 180 cm
Assembly Required
Yes
Package Contents
Roof, 3 Walls, Frame, Hardware, Instructions
Number of Boxes
17
Item Net Weight, Assembled, Without Packaging (lbs)
