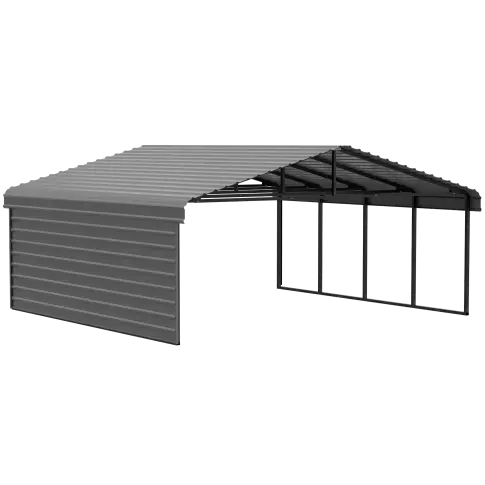

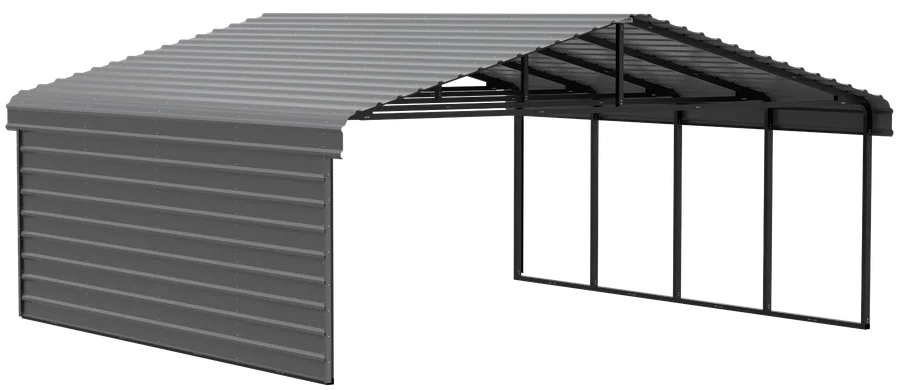

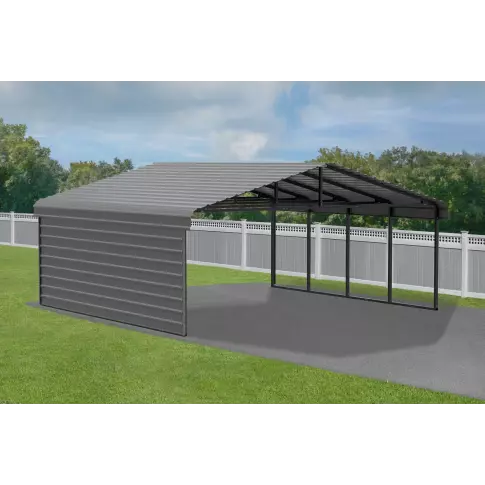

Arrow Galvanized Steel Carport, 20 × 20 × 9 ft, 1-Sided Enclosure, Charcoal

Out of stock
SKU
CPHC202009ECL1

Arrow

Special Price $4,603.49 Regular Price $5,049.00

Currently out of stock We will email you once when it is back in stock — no newsletter.

Notify me when it's back in stock We send one e-mail to your account address when it is back.

No account needed.

At a glance

  • 20 × 20 ft (6.1 × 6.1 m)
  • 11 ft 11 in tall (3.63 m)
  • Galvanized steel roof, charcoal
  • Black steel frame
  • Snow load 30 psf
  • Wind rating 70 mph
  • 10-year manufacturer warranty

The all-steel Arrow Carport with Enclosure is a convenient, versatile, and practical all-weather shade and shelter solution that can be used anywhere you need protection from the elements.

The all-steel Arrow Carport with Enclosure is a convenient, versatile, and practical all-weather shade and shelter solution that can be used anywhere you need protection from the elements. Each Arrow Carport is snow-load rated and designed to take on tough weather conditions. Get one to keep your everyday ride shielded from the weather or to keep your patio or party area shaded.

  • Featuring a 2 x 3 in. powder-coated steel tube frame, which provides stability and strength to the unit
  • Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box
  • Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
  • A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
  • The roof and sidewall panels come in an attractive Charcoal finish
  • Manufactured in the United States using globally-sourced materials
  • Comes with a 10-year warranty
  • Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.
  • The snow overload value is for reference only and assumes a firmly anchored framework in accordance with local building codes and municipal regulations. These loads were calculated using the combined snow load and wind load provisions in accordance with ASCE 7-05.

Arrow Carports Galvanized Steel Carport, with 1-Sided Enclosure, Compact Car Metal Carport Kit, 20' x 20' x 9' , Charcoal

Dimensions

Nominal size
20 × 20 ft
Exterior (W × D × H)
20 ft 3 in × 19 ft 9 in × 11 ft 11 in617 × 602 × 363 cm
Interior (W × D × H)
19 ft 9 in × 19 ft 9 in × 11 ft 8 in602 × 602 × 355 cm
Foundation (L × W)
21 ft × 21 ft640 × 640 cm
Covered area
390 sq ft36.2 m²
Storage volume
4,055 cu ft114.8 m³
Roof Angle
14
Shape of Tube
Rectangle
Nominal Assembled Height (ft)
9
Nominal Assembled Width (ft)
20
Door / Entrance Height, Outside Zippers (in)
108.75
Door / Entrance Width at Bottom, Outside Zippers (in)
237

Roof & frame

Color
Charcoal
Roof Type
Galvanized Steel Roof
Frame Material
Steel
Frame Color
Black
Cover Color
Charcoal
Wall Color
Charcoal
Roof Color
Charcoal
Roof Trim Color
Charcoal

Weather protection

Water-Resistant
Yes
Snow Load Rating (psf)
30
Wind Load Rating (mph)
70

In the box & shipping

Delivery
Freight carrier
Shipped weight
1,369 lb621 kg
Shipped size (L × W × H)
76.6 × 30.5 × 44.5 in195 × 77 × 113 cm
Assembly Required
Yes
Package Contents
Carport Frame & Roof, 1 Side Wall Enclosure, Fasteners, & Instructions
Number of Boxes
9
Item Net Weight, Assembled, Without Packaging (lbs)
1256
Item Gross Weight, Packaging Included (lbs)
1321

Warranty

Warranty
10 Years (manufacturer)

Product identifiers

UPC
026862128058
Brand
Arrow
SKU
CPHC202009ECL1

Start with us

Missing or damaged part, or a warranty question? Send us your order number and a photo by chat or at support@ipatio.ca. We reply within one business day.

support@ipatio.ca

Manufacturer warranty

Arrow: 10 years.

Read the warranty (PDF)

Customer Questions
How do I dispose of or recycle an old outdoor structure?
Steel components are 100% recyclable — take to a metal recycler. Fabric covers go in regular trash. Polycarbonate panels may be accepted at plastic recycling centres.
