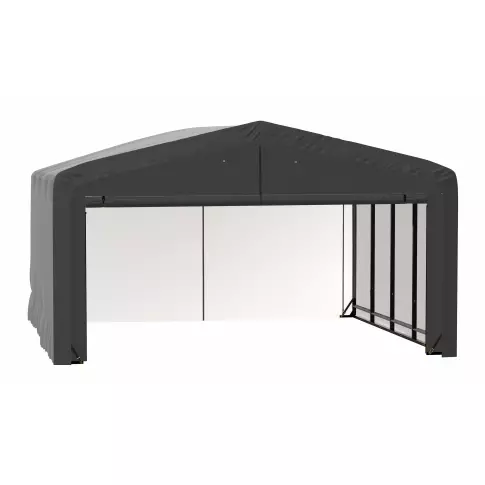

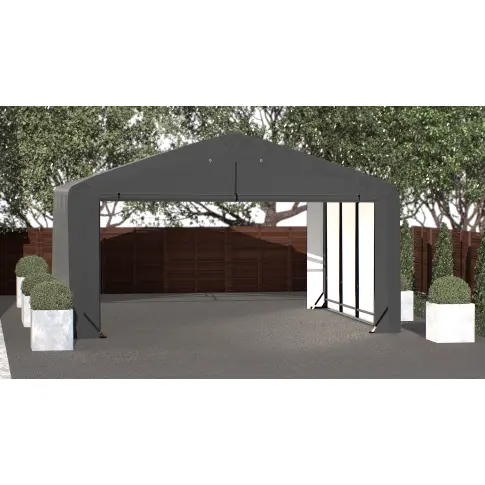

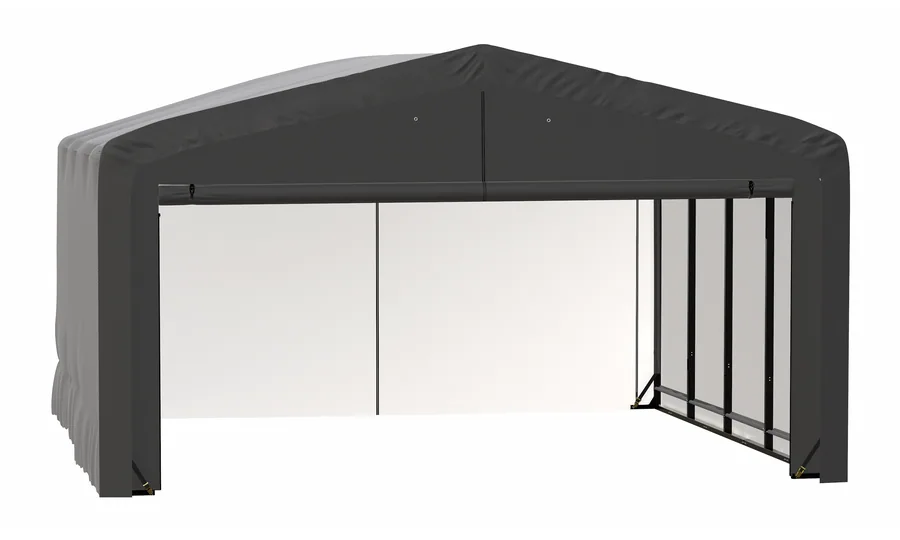

ShelterTube Wind and Snow-Load Rated Garage, 20x18x12 Gray
In stock
Only 2 left
SKU
SQAADD0103C02001812
Other Similar Products
ShelterTube Wind and Snow-Load Rated Garage, 20x18x10 GreenSpecial Price CA$3,370.00 Regular Price CA$3,999.98
ShelterTube Wind and Snow-Load Rated Garage, 20x18x12 GreenSpecial Price CA$3,630.00 Regular Price CA$4,199.98
Gazebo Penguin Deluxe Double Car Shelter 18 ft x 20 ft. WhiteSpecial Price CA$1,188.00 Regular Price CA$1,328.00
Canopy Enclosure Kit for the SuperMax 18 x 20 ft. White - Frame and Canopy Sold SeparatelySpecial Price CA$185.00 Regular Price CA$256.00
ShelterTube Wind and Snow-Load Rated Garage, 20x18x10 GraySpecial Price CA$3,385.00 Regular Price CA$3,899.98
The ShelterTube garage and storage shelter is an excellent option for anyone needing year-round protection for their vehicle, boat, and more. It is built strong with an industrial-strength square tube steel frame and a rugged fabric cover. The ShelterTube is wind and snow-load rated and can take on tough weather.
Feature Highlights
- Snow rated at 35 pounds per sq. ft. ground snow load
- Wind rated at 70 MPH
- Frame made from industrial grade 2 in. x 3 in. 15-gauge rectangular-tube steel which provides a strong frame
- A black powder-coated finish is applied on the frame with our proprietary 13-step process which provides superior protection from corrosion, rust, chips, and scratches
- The triple-layer fabric covers and end panels are 100% waterproof and engineered to create a tough cover that withstands the elements
- The cover is recommended by the Skin Cancer Foundation
- Designed for easy DIY assembly and installation with slip-fit connections and self-taping screws
- Zippered doors on both ends of the building provide easy access to everything in the building and drive through capability
| Manufacturer's Model Number | SQAADD0103C02001812 |
|---|---|
| UPC | 677599631207 |
| Brand | ShelterLogic |
| Shipping Type | LTL |
| Model | ShelterTube |
| Size | 18' x 20' |
| Frame Material | Steel |
| Frame Color | Black |
| Cover Color | Grey |
| Shape Of Tube | Rectangle |
| Assembly Required (Y/N) | Yes |
| Foldable (Y/N) | No |
| Storage Bag Included (Y/N) | No |
| Water-resistant (Y/N) | Yes |
| Waterproof (Y/N) | Yes |
| Snow Load Rating (Psf) | 30 |
| Wind Load Rating (Mph) | 70 |
| Total Storage Area (Sq/ft) | 366 |
| Total Storage Volume (Cu. Ft.) | 3843 |
| Foundation Length (In) | 228 |
| Foundation Width (In) | 252 |
| Door / Entrance Height (In) Center Zipper | 132 |
| Door / Entrance Height (In) Outside Zippers | 108 |
| Door Opening Width Top (In) Outside Zippers | 216 |
| Door / Entrance Width Bottom (In) Outside Zippers | 216 |
| Gable Height (In) | 38.2 |
| Assembled Interior Dimensions Depth (In) | 216.97 |
| Assembled Interior Dimensions Width (In) | 237.25 |
| Assembled Interior Dimensions Height (In) | 139.36 |
| Assembled Exterior Dimensions Depth (In) | 216.97 |
| Assembled Exterior Dimensions Width (In) | 242.76 |
| Assembled Exterior Dimensions Height (In) | 142.12 |
| Package Contents | Steel Frame One-Piece Fitted Cover 2 Double Zippered Door Panels 10 Easy Hook Anchors Easy Step-by-Step Instructions |
| # Of Boxes | 7 |
| Length As Shipped (Including Pallet If Applicable)(In) | 76.6 |
| Width As Shipped (Including Pallet If Applicable)(In) | 28.7 |
| Height As Shipped (Including Pallet If Applicable)(In) | 57.9 |
| Weight As Shipped (Including Pallet If Applicable)(Lbs) | 1051 |
| Warranty | Frame 10 Years Prorated, Year 1 Full Repair or Replacement. Cover 1 Year, Repair or replacement |
